Overview

UltraLink™-GX80 Advanced is INTRACOM TELECOM's high-performance E-Band (71-76/ 81-86 GHz) radio ideal for the transport network needs of Mobile 5G as well as Fixed network operators. As the evolution of the field-proven UltraLink-GX80 E-Band radio, it builds on its strengths, while offering increased system gain, throughput, improved connectivity and functionality capabilities.

UltraLink™-GX80 Advanced offers up to 15 Gbit/s Full Duplex throughput in 1+0 radio link configuration, utilizing one unit and one single polarization antenna per link side, by employing an industry-leading 512QAM modulation in a 2000 MHz-wide channel.

Benefits

• Up to 15 Gbit/s full-duplex Ethernet throughput in 1+0 configuration, delivering the most spectrally efficient single-transceiver E-Band radio performance.
• Dual Band configuration support, based on L1-link aggregation, with INTRACOM TELECOM MW radios enhances link range/availability for up to 15Gbit/s throughput E-Band-based links.
• Dual Band configuration support, based on L1-link aggregation, with third-party vendor radios enables easy link capacity upgrades up to 15Gbit/s throughput.
• Integrated Ethernet Bridge offers advanced L2 Carrier Ethernet networking functionality and comprehensive QoS.
• Software upgradeable to offer IP/MPLS networking functionality additionally to L2 networking functionality.
• Support of 3 x 1/10 GbE (SFP/SFP+) and 2x1GbE Electrical concurrently operating interfaces, enabling multi-sector capacity aggregation and formation of complex network configurations without additional networking devices.
• Transport of Ethernet and eCPRI traffic by the unit provides support for multiple 5G RAN architectures.
• Integrated radio link quality monitoring and diagnostics functionality enables faster deployment and efficient troubleshooting.
• As a compact fully outdoor radio, it minimizes cabinet, pole space and powering requirements and related TCO.
• Operation in low-licensing cost spectrum.

UltraStead-E : High Performance automatic 2-D beam stabilization antennas

Overview

UltraStead-E is INTRACOM TELECOM's Automatic E-Band/Dual Band antenna beam stabilization solution, which has been designed to provide dynamic link alignment stabilization and optimization in two-dimensions (2-D), i.e. in both the Elevation and Azimuth planes. The UltraStead-E beam stabilization system has been designed to provide link alignment stabilization for both E-Band and Dual Band antennas of nominal diameters of 60cm and 90cm. It is compatible with the UltraLink-GX80 Advanced and the UltraLink-GX80 Dual radios.

View Gallery

Benefits

• Maintains E-Band or Dual Band link capacity and link availability when the antenna installation structure suffers from temperature-related deformations causing link misalignment.
• Enables deployment of 90cm nominal diameter antennas, enhancing the link gain compared to 60 cm diameter antennas, allowing the extension of the link range by 20%.
• The Dual Band capability the UltraStead-E system can enhance the range extension benefit derived from the use of 90 cm diameter antennas, by multiplying it with the range extension benefit of the Dual Band configuration.
• Assists in optimizing the initial alignment, especially of 90cm antennas, so that the link is aligned faster for optimum antenna-related link gain, which is maintained throughout the lifetime of the system.
• It is fully manageable remotely, implementing strict access and communication security measures and providing status monitoring, configuration control, SW upgradability.

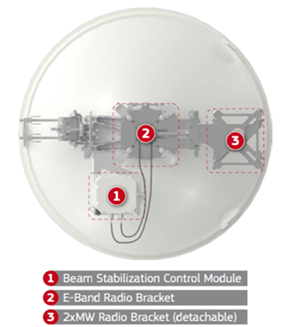

UltraStead-E beam stabilization antennas

Previous Next

Highlights

Radio features and Configurations

• Operating Frequencies: 71,000 to 76,000 / 81,000 to 86,000 MHz
• Channel Sizes: 125 / 250 / 500 / 750 / 1,000 / 1,500 / 2,000 MHz
• Duplexing Scheme: FDD
• Ethernet Throughput: Up to 15 Gbit/s
• Modulation types: BPSK to 1024-QAM
• Link Adaptation: Hitless ACM mechanism up to 10 states
• Forward Error Correction: LDPC / Reed Solomon
• Configurations: 1+0, 2+0 XPIC / RLA, Dual Band (BCA) with Intracom Telecom or Third Party MW radios

Networking Features

• IEEE 802.1Q (VLAN), IEEE 802.1p
• IEEE 802.1ad (Provider Bridge (Q-in-Q))
• IEEE 802.1w (RSTP) / IEEE 802.1s (MSTP)
• IEEE 802.1AX (LAG/LACP)
• ITU-T G.8032v2 (ERP)
• Carrier Ethernet E-Line, E-LAN services
• Comprehensive 8 queue QoS. Flow Classification, Ingress Policing, Egress Shaping, Queue Congestion management, multiple Queue scheduling schemes
• Hierarchical QoS
• eCPRI, IEEE 802.1CM Profile A
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• IEEE 802.1ag (Service OAM (CFM)), ITU-T Y.1731 (Performance Monitoring)
• ITU-T G.8013/ Y.1731 Ethernet Bandwidth Notification (ETH-BN)
• ITU-T G.8013/ Y.1731 Ethernet Client Signal Fail (ETH-CSF)
• IEEE 802.3ah (Link OAM (EFM))
• SW upgradability to IP/MPLS functionality

Synchronization

• ITU-T G.8262.1 / G.8264 (Enhanced Synchronous Ethernet)
• IEEE 1588-2008 TC (E2E)
• IEEE 1588-2008/ITU-T G.8275.1 T-BC

Management & Monitoring

• Embedded Web Server (WebUI)
• Command Line Interface (CLI)
• Intracom Telecom NMS (uni|MS™)

Applications

Mobile Network Operators

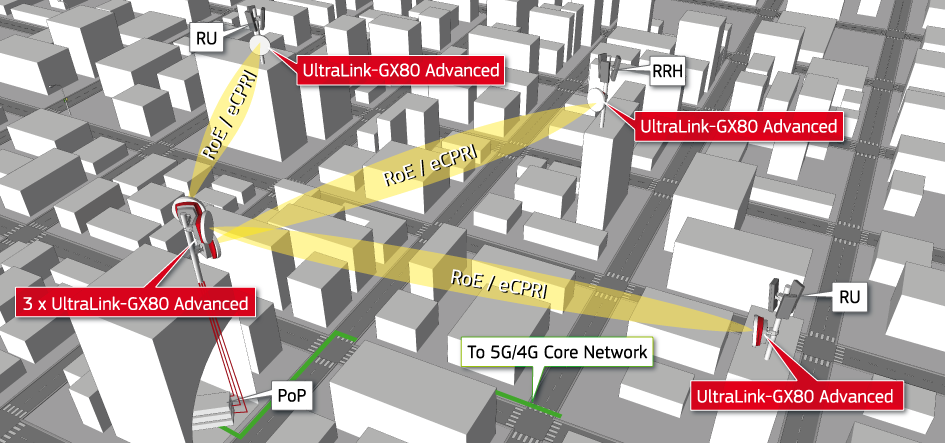

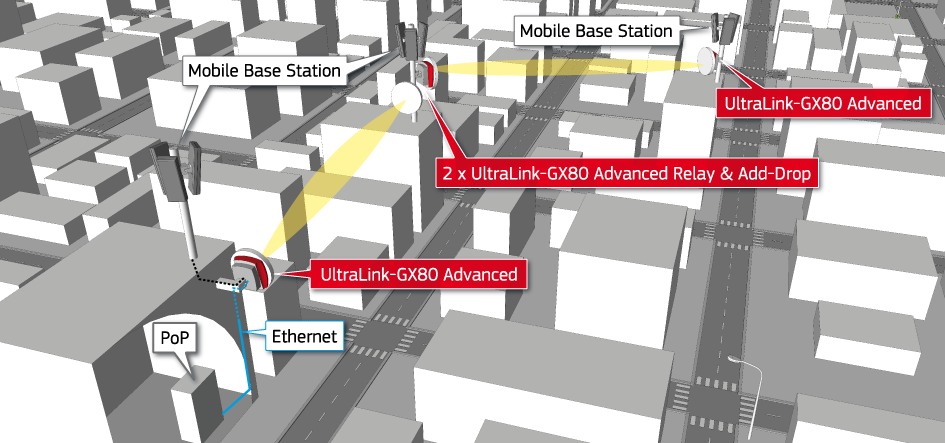

• Backhaul / midhaul / fronthaul of 2G, 3G, 4G & 5G RAN

Fixed Service Network Operators/ ISPs

• Backhaul of Fixed Wireless Access base stations
• Optical Fiber-extension to high value customers
• Optical fiber network resiliency through wireless route backup

Private Networks

Large organizations with multi-building connectivity needs such as enterprises in the manufacturing sector or services / logistics sector, utilities & mining industries, public sector & governmental agencies, university campus areas, ports can deploy UltraLink™-GX80 Advanced to:

• Create multi-gigabit/s connections between buildings
• Backhaul of private network 4G / 5G base stations & WiFi Access points
• Optical fiber network resiliency through wireless route backup
