Overview

UltraLink™-FX80 Compact Node (CN) is a native Ethernet E-Band radio that achieves a throughput of up to 3 Gbit/s full duplex. It supports a complete set of Carrier Ethernet networking and packet synchronization features. UltraLink™-FX80 CN's small size, weight and powering flexibility makes it ideal for installation in places where space is at a premium and support structures and powering arrangements are not of telco grade, such as street-level locations.

UltraLink™-FX80 CN can fit in a multitude of use cases, such as, macro, micro, and small-cell backhaul and fronthaul applications for 2G, 3G, 4G RAN, fixed wireless access (FWA) base station/ WiFi backhaul, connectivity services for government / public service buildings, large enterprise and factory sites, shipping ports, logistics depos, university campuses, industrial park sites to name a few.

Benefits

• Up to 3 Gbit/s full-duplex Ethernet throughput in simple 1+0 link configuration.
• Highest spectrum efficiency (up to 1024-QAM modulation) provides more capacity for a channel size.
• Market-leading system gain for longer E-Band link range.
• Support of transport of Ethernet and native CPRI traffic in the same unit.
• Support of Synchronous Ethernet and IEEE 1588v2 TC & BC.
• Powering mode versatility (DC or AC) and small form-factor for deployment even in non-telco sites.
• Integrated radio link quality monitoring and diagnostics, offering enhanced channel quality monitoring, channel impairment identification and troubleshooting.
• Operation in low-licensing cost spectrum.

Highlights

Radio features and Configurations

• Operating Frequencies: 71,000 to 76,000 / 81,000 to 86,000 MHz
• Channel Sizes: 62.5 / 125 / 250 / 500 MHz
• Duplexing Scheme: FDD
• Ethernet Throughput: Up to 3 Gbit/s
• Modulation types: 4QAM to 1024-QAM
• Link Adaptation: Hitless ACM mechanism up to 9 states
• Forward Error Correction: LDPC / Reed Solomon
• Configurations : 1+0 , Dual Band

Networking Features

• IEEE 802.1Q (VLAN), IEEE 802.1p
• IEEE 802.1ad (Provider Bridge (Q-in-Q))
• IEEE 802.1w (RSTP) / IEEE 802.1s (MSTP)
• IEEE 802.1AX (LAG/LACP)
• ITU-T G.8032v2 (ERP)
• Carrier Ethernet E-Line, E-LAN services
• Comprehensive 8 queue QoS. Flow Classification, Ingress Policing, Egress Shaping, Queue Congestion management, multiple Queue scheduling schemes
• Hierarchical QoS
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• IEEE 802.1ag (Service OAM (CFM)), ITU-T Y.1731 (Performance Monitoring)
• ITU-T G.8013/ Y.1731 Ethernet Bandwidth Notification (ETH-BN)
• IEEE 802.3ah (Link OAM (EFM))

Synchronization

• ITU-T G.8262 / G.8264 (Synchronous Ethernet)
• IEEE 1588-2008 TC (E2E)
• IEEE 1588-2008/ITU-T G.8275.1 T-BC

Management & Monitoring

• Embedded Web Server (WebUI)
• Command Line Interface (CLI)
• Intracom Telecom NMS (uni|MS™)

Applications

Mobile Network Operators

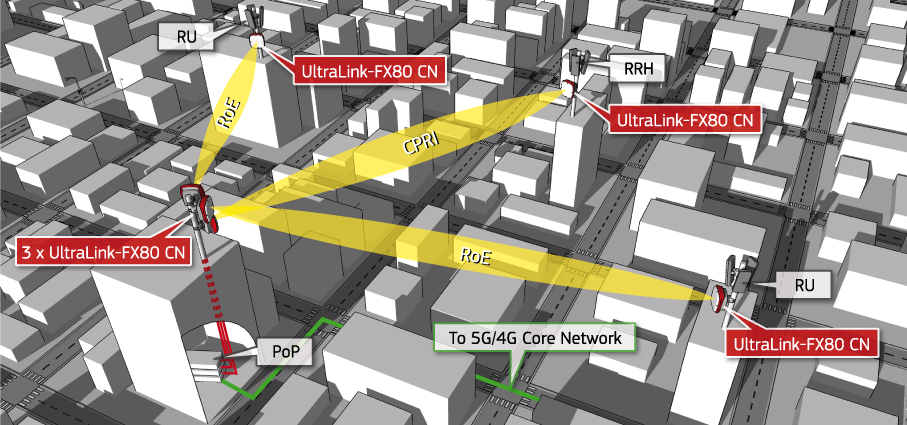

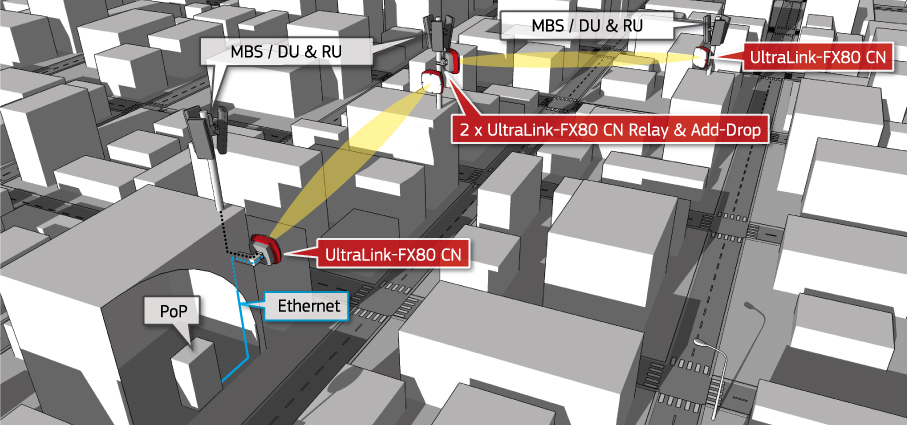

• Backhaul fronthaul of 2G, 3G, 4G RAN.

Fixed Service Network Operators/ ISPs

• Backhaul of Fixed Wireless Access base stations/ WiFi Access points
• Optical Fiber-extension to high value customers
• Optical fiber network resiliency through wireless route backup

Private Networks

Large organizations with multi-building connectivity needs such as enterprises in the manufacturing sector or services / logistics sector, utilities & mining industries, public sector & governmental agencies, university campus areas, ports can deploy UltraLink™-FX80 CN to:

• Create multi-gigabit/s connections between buildings
• Backhaul of private network 4G base stations & WiFi Access points
• Optical fiber network resiliency through wireless route backup
