Overview

UltraLink™-GX80 is a high-performance, high-capacity E-Band (71-76 / 81-86 GHz) radio designed for use in demanding wireless transport applications. Its cutting-edge modem and RF transceiver technology deliver market-leading E-Band link range at 10 Gbit/s full duplex throughput. UltraLink™-GX80 is a uniquely versatile fully-outdoor radio suitable for wide variety of applications. It supports Ethernet/IP, eCPRI or CPRI traffic transport, while offering a rich set of L2 and L3 networking features for the delivery of Carrier Ethernet and IP/MPLS-based services. UltraLink™-GX80 is ideally suited for 4G/4G+/5G RAN backhaul, midhaul and fronthaul or any transport application in Ethernet/IP-based networks as an alternative to optical fiber.

Benefits

• Up to 10 Gbit/s full-duplex throughput, in 1+0 configuration, offering the most cost-effective alternative to optical fibre.
• Up to 20 Gbit/s full-duplex capacity over a single antenna in 2+0 XPIC configuration.
• Highest System Gain at 10Gbit/s, enabling 10Gbit/s operation for >14km ranges.
• Dual Band configuration support, based on L1-link aggregation, with INTRACOM TELECOM or Third-Party MW radios enhances link range/availability for up to 10Gbit/s throughput E-Band-based links.
• Transport of Ethernet, eCPRI or CPRI traffic on the same unit supports multiple 4G/5G RAN architectures.
• Offers advanced L2 & IP/MPLS networking functionality without the need for additional networking devices.
• Integrated radio link quality monitoring and diagnostics enables faster deployment and efficient troubleshooting.
• As a compact outdoor radio it minimizes cabinet and pole space requirements and related TCO.
• Operation in low-licensing cost spectrum.

UltraStead-E : High Performance automatic 2-D beam stabilization antennas

Overview

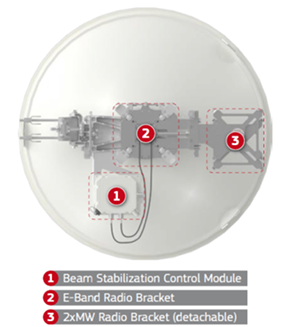

UltraStead-E is INTRACOM TELECOM's Automatic E-Band/Dual Band antenna beam stabilization solution, which has been designed to provide dynamic link alignment stabilization and optimization in two-dimensions (2-D), i.e. in both the Elevation and Azimuth planes. The UltraStead-E beam stabilization system has been designed to provide link alignment stabilization for both E-Band and Dual Band antennas of nominal diameters of 60cm and 90cm. It is compatible with the UltraLink-GX80 Advanced and the UltraLink-GX80 Dual radios.

View Gallery

Benefits

• Maintains E-Band or Dual Band link capacity and link availability when the antenna installation structure suffers from temperature-related deformations causing link misalignment.
• Enables deployment of 90cm nominal diameter antennas, enhancing the link gain compared to 60 cm diameter antennas, allowing the extension of the link range by 20%.
• The Dual Band capability the UltraStead-E system can enhance the range extension benefit derived from the use of 90 cm diameter antennas, by multiplying it with the range extension benefit of the Dual Band configuration.
• Assists in optimizing the initial alignment, especially of 90cm antennas, so that the link is aligned faster for optimum antenna-related link gain, which is maintained throughout the lifetime of the system.
• It is fully manageable remotely, implementing strict access and communication security measures and providing status monitoring, configuration control, SW upgradability.

UltraStead-E beam stabilization antennas

Previous Next

Highlights

Radio features and Configurations

• Operating Frequencies: 71,000 to 76,000 / 81,000 to 86,000 MHz
• Channel Sizes: 125 / 250 / 500 / 750 / 1,000 / 1,500 / 2,000 MHz
• Duplexing Scheme: FDD
• Ethernet Throughput: Up to 10 Gbit/s
• Modulation types: 4QAM to 1024-QAM
• Link Adaptation: Hitless ACM mechanism up to 9 states
• Forward Error Correction: LDPC / Reed Solomon
• Configurations : 1+0, 2+0 XPIC / RLA, Dual Band (BCA) with Intracom Telecom or Third Party MW radios

Networking Features

• IEEE 802.1Q (VLAN), IEEE 802.1p
• IEEE 802.1ad (Provider Bridge (Q-in-Q))
• IEEE 802.1w (RSTP) / IEEE 802.1s (MSTP)
• IEEE 802.1AX (LAG/LACP)
• ITU-T G.8032v2 (ERP)
• Carrier Ethernet E-Line, E-LAN services
• Comprehensive 8 queue QoS. Flow Classification, Ingress Policing, Egress Shaping, Queue Congestion management, multiple Queue scheduling schemes
• Hierarchical QoS
• eCPRI, IEEE 802.1CM Profile A
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• IEEE 802.1ag (Service OAM (CFM)), ITU-T Y.1731 (Performance Monitoring)
• ITU-T G.8013/ Y.1731 Ethernet Bandwidth Notification (ETH-BN)
• ITU-T G.8013/ Y.1731 Ethernet Client Signal Fail (ETH-CSF)
• IEEE 802.3ah (Link OAM (EFM))

L3 and IP/MPLS Networking Features

• IPv4 L3 Routing (OSPF, IS-IS, BGP, RIPv1/RIPv2 and static routing)
• MPLS LDP, RSVP
• L3VPN and MP-BGP
• L2VPN VPWS and VPLS (raw and tagged mode) with LDP signaling
• BFD (static route, OSPF, IS-IS) and MPLS-OAM
• Network slicing tools (L3 sub-interface, VRF, RSVP-TE, MS-PW, advanced QoS Ingress/Egress)
• Hybrid Layer 2 and Layer 3 operation
• OSPFv3 over SVI routing for IPv6 traffic (for management traffic only)

Synchronization

ITU-T G.8262 / G.8264 (Synchronous Ethernet)

• IEEE 1588-2008 TC (E2E)
• IEEE 1588-2008/ITU-T G.8275.1 T-BC

Management & Monitoring

• Embedded Web Server (WebUI)
• Command Line Interface (CLI)
• Intracom Telecom NMS (uni|MS™)

Applications

Mobile Network Operators

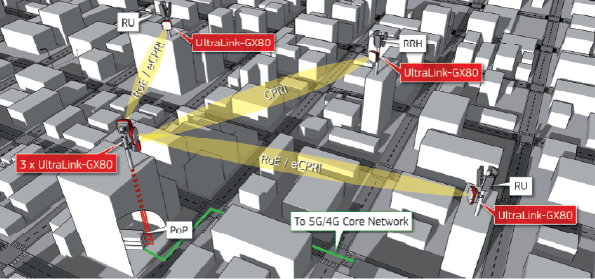

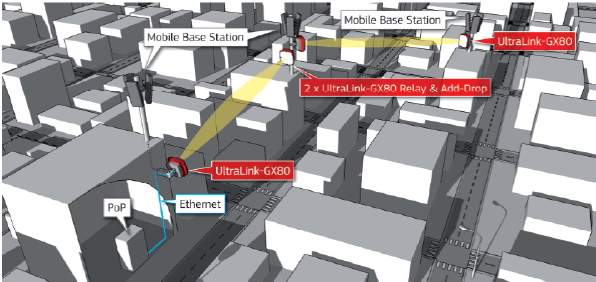

• Backhaul / midhaul / fronthaul of 2G, 3G, 4G & 5G RAN.

Fixed Service Network Operators/ ISPs

• Backhaul of Fixed Wireless Access base stations
• Optical Fiber-extension to high value customers
• Optical fiber network resiliency through wireless route backup

Private Networks

Large organizations with multi-building connectivity needs such as enterprises in the manufacturing sector or services / logistics sector, utilities & mining industries, public sector & governmental agencies, university campus areas, ports can deploy UltraLink™-GX80 Advanced to:

• Create multi-gigabit/s connections between buildings
• Backhaul of private network 4G / 5G base stations & WiFi Access points
• Optical fiber network resiliency through wireless route backup
