Overview

OmniBAS™ is a multi-Gigabit smart packet Point-to-Point microwave (PtP MW) solution that ideally fits today's and tomorrow's bandwidth-intensive IP transmission applications.

OmniBAS™ ideally implements the MW access & aggregation segments of mobile 4G+ / 5G networks, extends the reach of fixed broadband to rural areas and rapidly deploys IP communication and control links for utility companies and governmental agencies. It offers multi-Gigabit IP radio capacity supporting market-leading modulations (4096-QAM) and channels up to 112 MHz, while at the same time enables an evolved and smooth migration to an IP architecture. Legacy (TDM) services are seamlessly transported over Pseudowires with carrier-class reliability and the highest availability.

OmniBAS™ allows highly-flexible and cost-optimized link configurations through the use of all-outdoor (OmniBAS™-BX, OmniBAS-BXd, OmniBAS™-OSDR, OmniBAS-BXca) and split-mount (OmniBAS-2Wcx) units in tail sites, or through medium/high nodal solutions (OmniBAS-4Wv2 and OmniBAS-4Wcx / OmniBAS-4Wv2e, OmniBAS-4Wr and OmniBAS-8W) in traffic aggregation sites, all from the same platform.

OmniBAS™ CBAN (Converged Backhaul Aggregation Node), in particular, is a unique multi-technology solution allowing aggregation of PtP, Point-to-MultiPoint (PtMP) and E-Band links, and supporting a wide range of connectivity options (E1, GbE, 10GbE).

The advanced radio and smart packet networking features of OmniBAS™ products assure bandwidth optimization, carrier-class service delivery and highest-possible availability.

Benefits

• Market-leading radio capacity and functionality
• Future-proof functionality for 5G backhaul
• Ready for the IP world - single technology investment for advanced backhaul and access needs
• Unmatched agility: all-outdoor and split-mount, higher-nodal hubs and ring configurations
• Compatible with OmniBAS all-outdoor units (OmniBAS-BX, OmniBAS-BXd, OSDR) for flexible last-mile MW topologies
• Unified backhaul for macro sites and small cells with CBAN
• OmniBAS-4Wcx is part of the Dual-Band solution (with UltraLink-GX80)
• Powerful end-to-end service & network management

Highlights

A Unique Family of Highly-Valued Products

The OmniBAS™ comprehensive portfolio of IP MW products allows for flexible deployments and optimized Total Cost of Ownership (TCO):

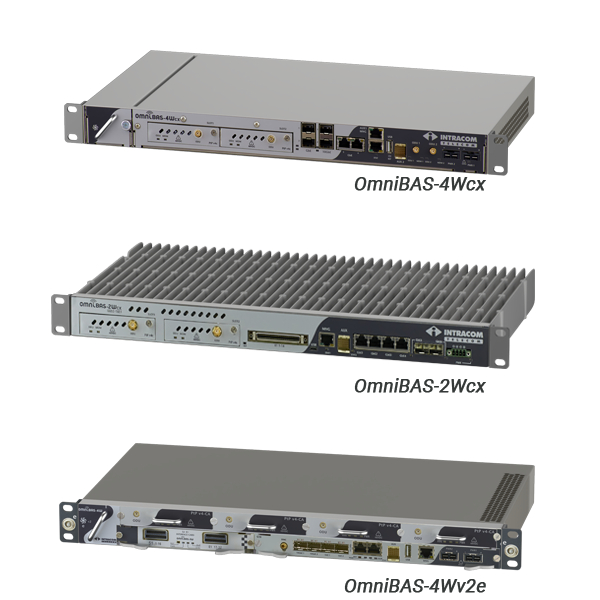

• Highly-advanced, low-profile indoor units:
  • OmniBAS™-2Wcx (1 RU): with six GbE Interfaces and two modular modem cards (56, 112MHz) for configurations up to 1+1 / 2+0 / XPIC 2+0 , from the same chassis for lower CapEx.
  • OmniBAS™-4Wcx (1 RU): with two built-in modems and expandable with 2 additional modem cards 112 MHz (same with OmniBAS-2Wcx) to support configurations up to 4+0/2+2/ 2 x XPIC 2+0; OmniBAS-4Wcx is optimized for 10GbE interface requirements.

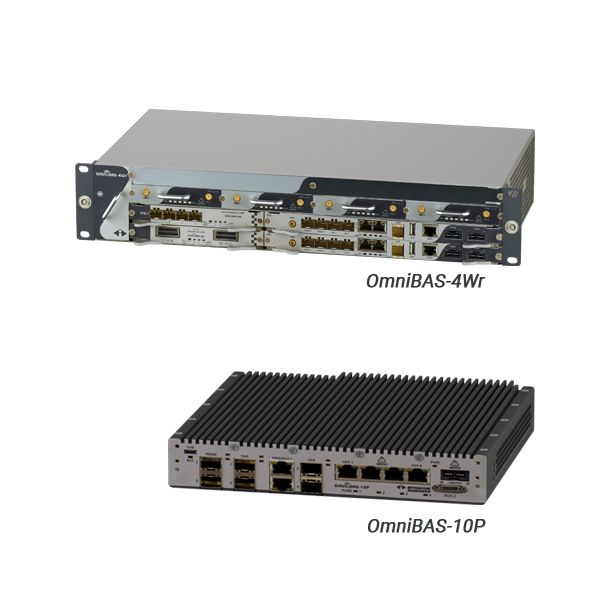

  • OmniBAS™-8W (2 RU) / OmniBAS-4Wr (2 RU): unmatched modularity, up to eight radios from the same chassis (with modems 56 or 112 MHz / double modems 112 MHz), 10GbE, GbE & E1 capabilities and full redundancy for control and communication modules - optimized for higher-nodal , XPIC and CBAN applications.
  • OmniBAS™-4W (1RU): modular unit based on OmniBAS™-8W cards, supporting up to eight radios (with double modem cards 112 MHz) from the same chassis - also optimized for nodal and XPIC applications.
• Compact high-performance outdoor units (ODUs):
  • Frequencies 6 to 38 GHz
  • Market-leading modulation up to 4096-QAM
  • Software-defined channel size (7 / 14 / 28 / 56 / 112 MHz)
  • Sub-band free ODU versions at 13 and 18 GHz
• Full set of ancillaries and compact integrated antennas and couplers with XPIC capabilities

NMS

• Managed by state-of-the-art element / network / service unified management suite (uni|MS™).
• Embedded Web Node Manager
• G.826 statistics for radio paths.
• RMON statistics for Ethernet and radio ports.
• SNMPv3

Rich Features for Unlimited Possibilities

OmniBAS™ combines leading capacity with superior radio characteristics and advanced IP/MPLS functionality to deliver top-notch performance:

• Leading full duplex 0.55 / 1 Gbit/s radio throughput over a single 56/ 112 MHz channel.
• Double throughput with XPIC.
• Multi-carrier Radio Link Aggregation (RLA) for multi-gigabit link capacity, load balancing among air links, and increased availability.
• Hitless adaptive modulation (up to 4096-QAM) for optimum bandwidth utilization and lower CapEx & OpEx.
• Pre-Distortion (PD) for extended range support and high availability even at higher modulations.
• LDPC and Reed Solomon FEC for robust operation.
• Advanced traffic handling and QoS:
  • IEEE 802.1Q (Virtual LAN) & IEEE 802.1p (QoS)
  • IEEE 802.1ad (provider bridging, Q in Q)
  • Packet classification per VLAN / P-Bits / DSCP / MPLS exp / IPv6 QoS
  • Eight QoS queues with configurable queue size
  • Two-rate, three-color policer (2R3CP)
  • SP / WRR / WFQ scheduling
  • WRED congestion control
  • Egress traffic shaping per port
  • Multilayer header compression
  • Jumbo frames 9,600 bytes
  • Encryption AES 256 (FIPS-197)
  • H-QoS
  • Automatic ETH-BNM (G.8013 / Y.1731)
  • ITU-T G.8032v2 (Ethernet Ring Protection)
  • IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)
  • IEEE 802.3ad (link aggregation ), static and LACP
  • LLDP
• Efficient Ethernet OAM (IEEE 802.1ag (CFM), ITU-T Y.1731 (PM) , IEEE 802.3ah (EFM)), for end-to-end management.
• System synchronization:
  • Synchronous Ethernet (ITU-T G.8261 / G.8262. G.8264 (ESMC))
  • IEEE 1588v2 TC/BC
  • E1 / STM-1 (VC-12)-based.

Applications

OmniBAS™ supports a large variety of network topologies that meet the transmission requirements of:

• Mobile 4G / 5G backhaul networks
• Leasing services for CLECs / ISPs
• Resilient network infrastructures
• Rural networks
• Unified multi-technology IP/MPLS backhaul

Two indicative OmniBAS™ deployment examples are shown below.

Mobile Backhaul

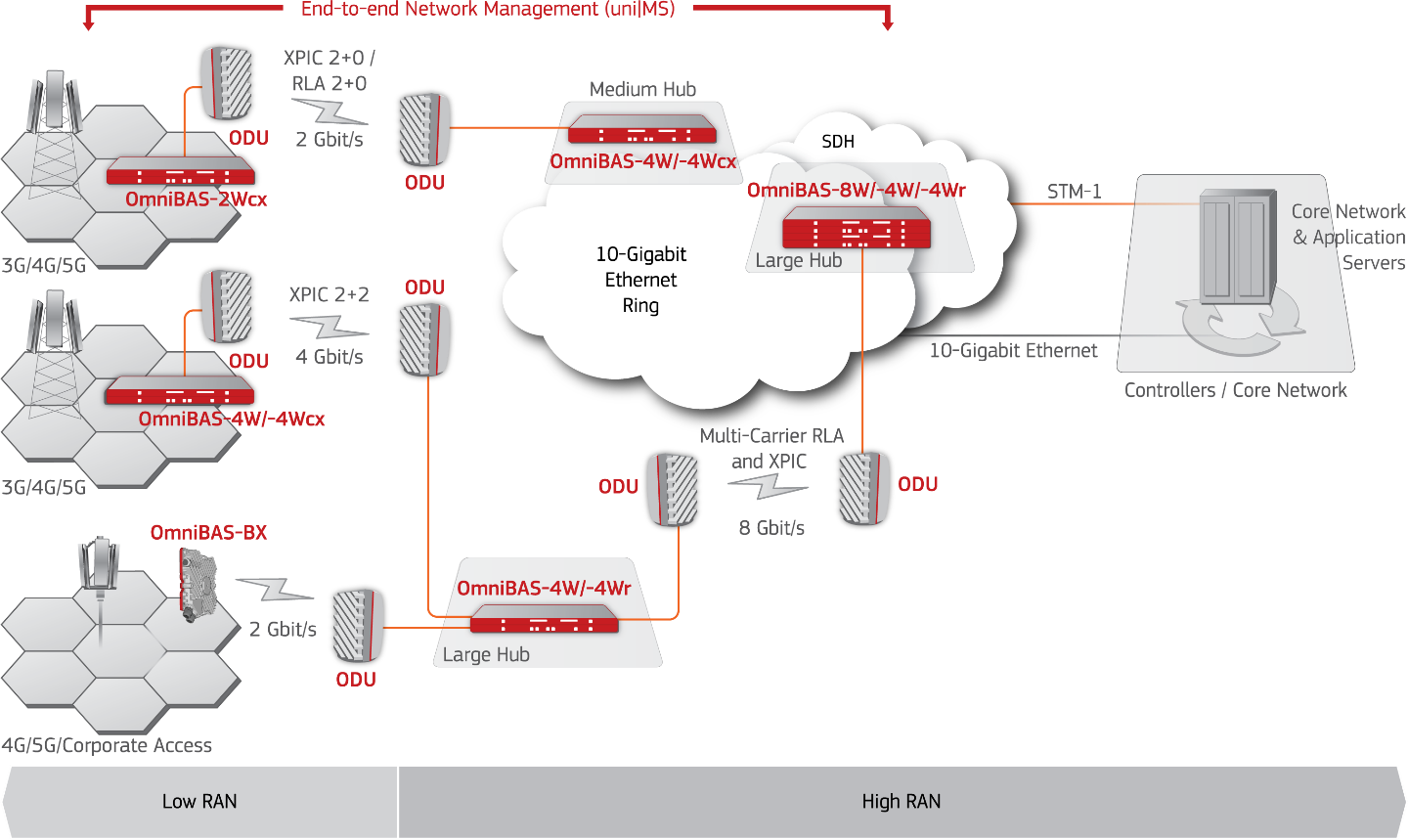

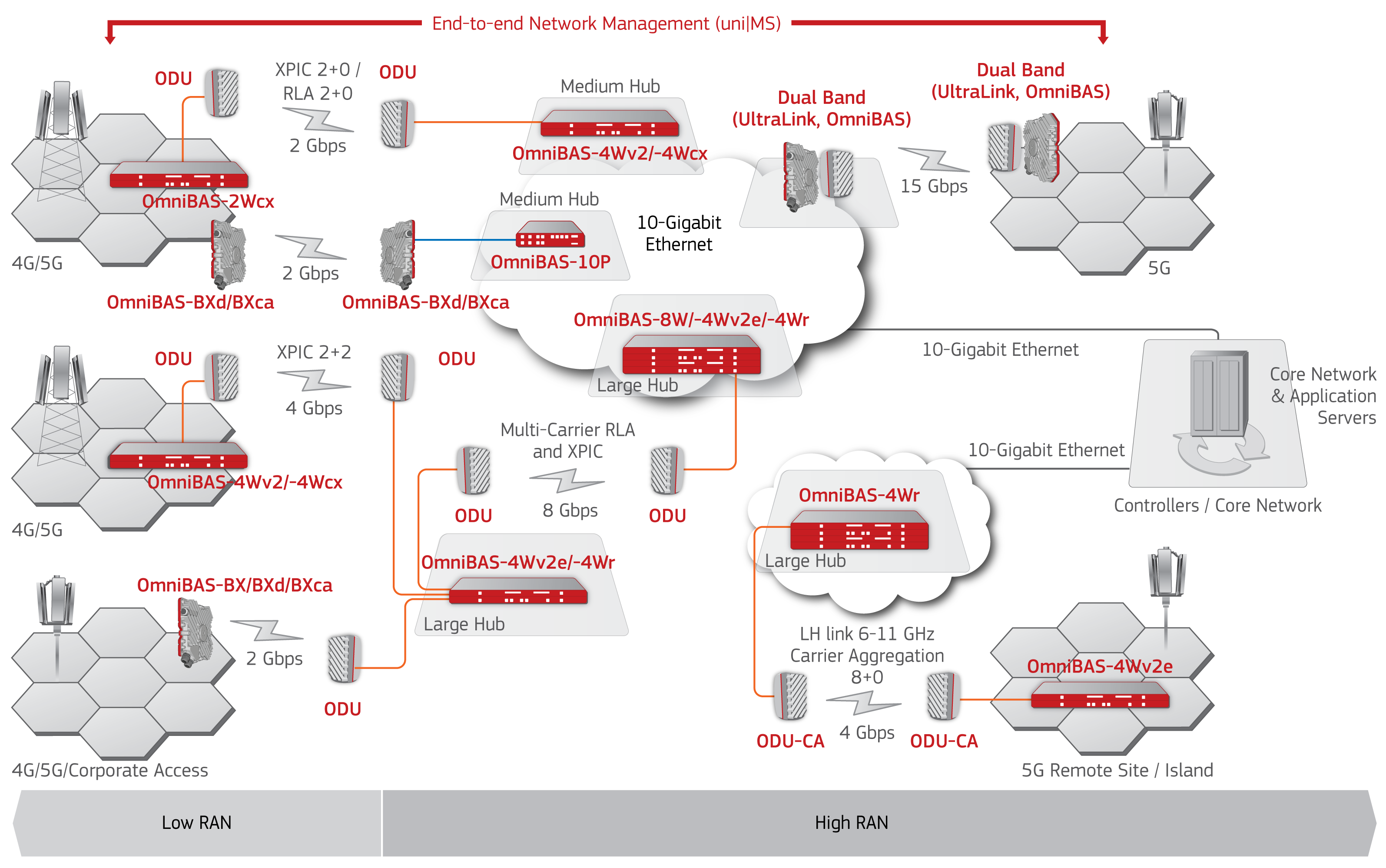

A wide range of last-mile and nodal deployment scenarios can be implemented for mobile backhaul, as prescribed by the IP backhaul agility of the OmniBAS™ product family.

Protected Ethernet Rings

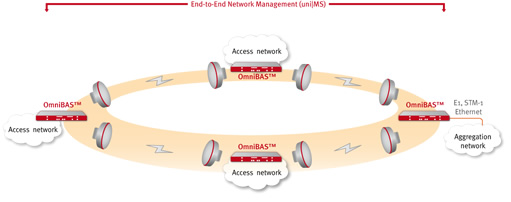

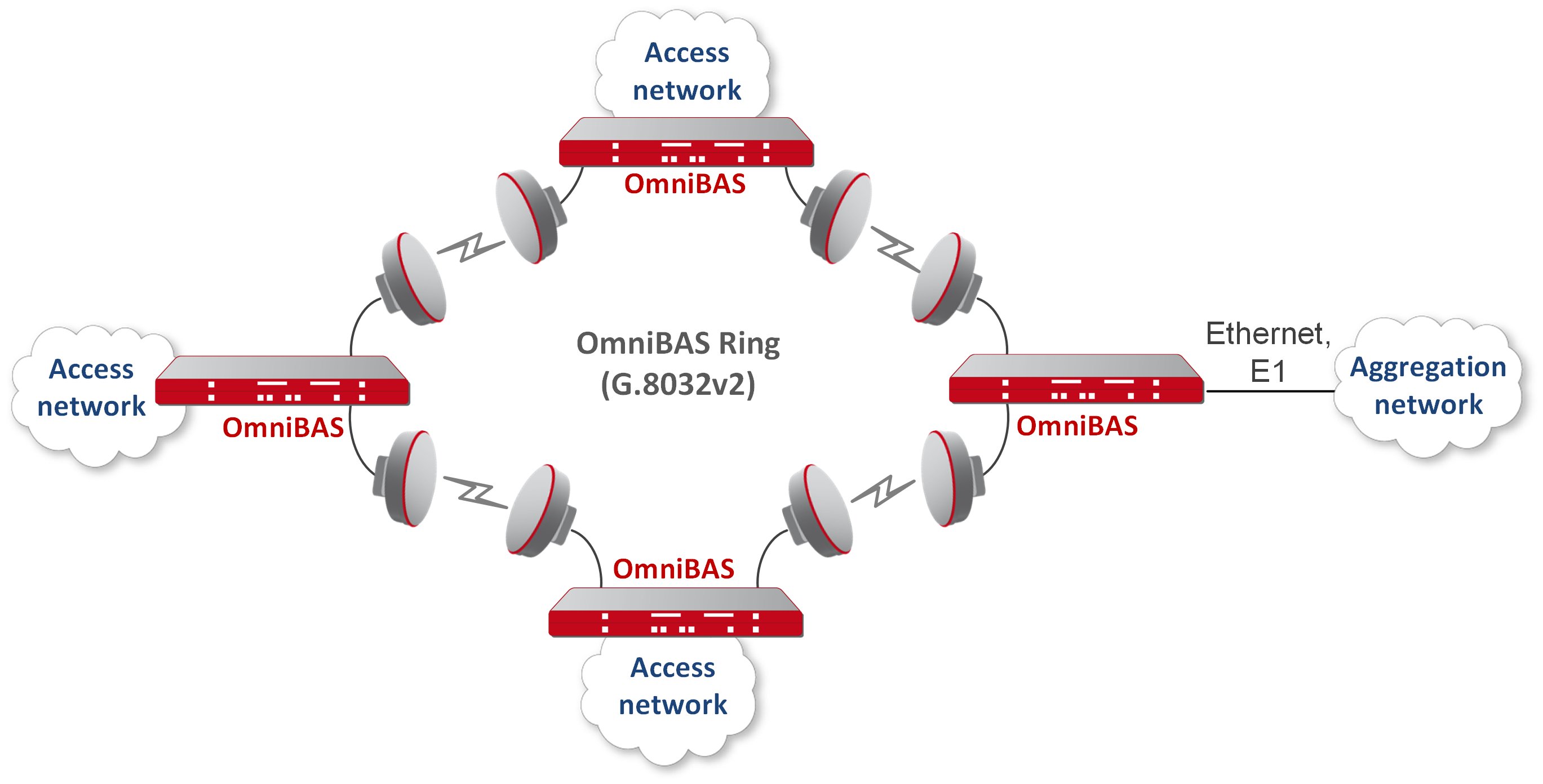

By using several OmniBAS units, native Ethernet rings can be implemented, as defined in the ITU-T G.8032v2 specification. Such rings will have the following characteristics:

• Protection and recovery switching within 50 ms.
• Efficient bandwidth utilization of ring traffic with multiple instances.
• Multiple and interconnected rings.
• Automatic reversion mechanism upon fault recovery.
