Overview

OmniBAS™-BXd, the new generation of dual-core all-outdoor radios of the OmniBAS™ Point-to-Point MW family, addresses the operator need for advanced, cost-effective, multi-Gigabit IP transmission solutions using just one outdoor unit.

OmniBAS™-BXd features a novel design to support 2 x 112 MHz channels in a single compact unit accommodating adaptable carrier allocations with replaceable duplexers in a wide range of MW frequency bands (11 - 38 GHz). Using the appropriate OmniBAS Coupling Units (OBCU) and a broad range of integrated antennas (0.3 / 0.6 / 0.8 / 1.2 / 1.8 m), it can be flexibly configured for 1+0, 1+1, 2+0 or XPIC 2+0 link operation using one unit.

OmniBAS™-BXd offers leading modulations (4096-QAM) per channel and throughput up to 2.5 Gbit/s per unit, while employing advanced radio and traffic processing functionality to demonstrate exceptional IP MW radio performance.

OmniBAS™-BXd is compatible with both OmniBAS™ split-mount and OmniBAS™-BX all-outdoor units and is also manageable through the same powerful uni|MS™ platform.

OmniBAS™-BXd is ideal for both 5G MW backhaul and for a wide range of enterprise wireless connectivity applications.

Benefits

• Support of 2 x 112 MHz channels and 2.5 Gbit/s throughput from one single unit.
• Market-leading modulation 4096-QAM (in channels up to 112 MHz).
• Novel design with band-free base unit (13-15 GHz) and replaceable duplexers.
• Compact unit, less space required on pole (one unit instead of two).
• Flexible link configurations in one unit: XPIC 2+0 / RLA 2+0 / HSB 1+1.
• Ideal for last-mile multi-Gigabit backhaul.
• Compatible with both OmniBAS™ split-mount (IDU - ODU) and all-outdoor OmniBAS™-BX units.
• Powerful end-to-end service & network management.
• Part of the dual-band all-outdoor solution (with UltraLink™-GX80 radio).

Highlights

Being integral part of the OmniBAS™ MW portfolio, OmniBAS™-BXd offers market-leading radio performance, excessive IP capacity and advanced traffic handling and control functionality.

Radio Features & Configurations

• Dual-core: support of 2 x 112 MHz channels from one single unit.
• Hitless adaptive modulation (4-QAM to 4096-QAM).
• Leading, full-duplex 2.5 Gbit/s throughput from one single unit.
• XPIC 2+0 and Radio Link Aggregation (RLA) 2+0 from one single unit.
• Pre-Distortion (PD) for extended range support and high availability even at higher modulations.
• LDPC and Reed Solomon FEC for robust operation.
• IFG / PRE &MAC Header suppression.
• Configurations in one unit:
  • 1+0
  • RLA 2+0
  • HSB 1+1
  • XPIC 2+0
• Configurations interconnecting two units:
  • HSB 2+2
  • HSB XPIC 2+2

NMS

• Managed by state-of-the-art element / network / service unified management suite (uni|MS™)
• Embedded Web Node Manager
• SNMPv3, RMON and G.826 Statistics
• Radio Link Quality Monitoring (RLQM)
• SDN (NETCONF/YANG) capable platform

Ethernet, QoS & System Features

• IEEE 802.1Q (Virtual LAN) & IEEE 802.1p (QoS)
• IEEE 802.1ad (provider bridging, Q in Q)
• Packet classification per VLAN / P-Bits / DSCP / MPLS exp / IPv6 QoS
• H-QoS, Eight QoS queues; two-rate, three-color policer (2R3CP).
• SP / WRR / WFQ scheduling
• Jumbo Frames: 9,600 bytes
• MEF 9 & MEF 14 compliant for EPL, EVPL and ELAN
• WRED congestion control
• Egress traffic shaping per port
• Direct forwarding - MAC Learning disable per VLAN
• Efficient Ethernet OAM, for end-to-end management:
  • IEEE 802.1ag (CFM), ITU-T Y.1731 (PM), IEEE 802.3ah (EFM)
• ITU-T G.8032v2 (Ethernet Ring Protection)
• IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)
• IEEE 802.3ad (Link Aggregation) – static and LACP
• Automatic ETH-BNM (G.8013 / Y.1731)
• IP / MPLS capable platform
• Encryption AES 256 (FIPS-197)
• LLDP
• System synchronization:
  • Synchronous Ethernet (ITU-T G.8261 / G.8262. G.8264 (ESMC))
  • IEEE 1588v2 TC/BC

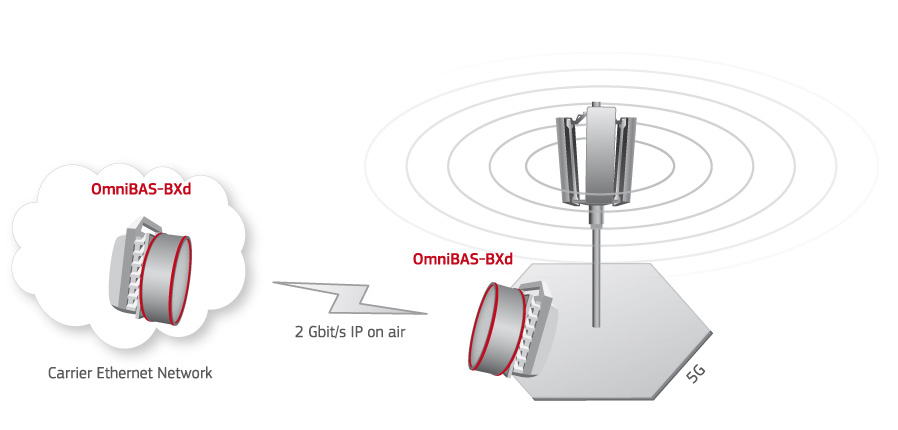

Applications

OmniBAS™-BXd implements a large variety of network topologies for meeting the transmission requirements of:

• Last-mile mobile 5G IP backhaul networks.
• All-outdoor IP MW multi-Gigabit transmission networks for Competitive Local Exchange Carriers (CLECs).
• Zero-footprint, multi-Gigabit IP MW transmission for utilities, outside plants and other enterprise wireless transmission networks.
