Overview

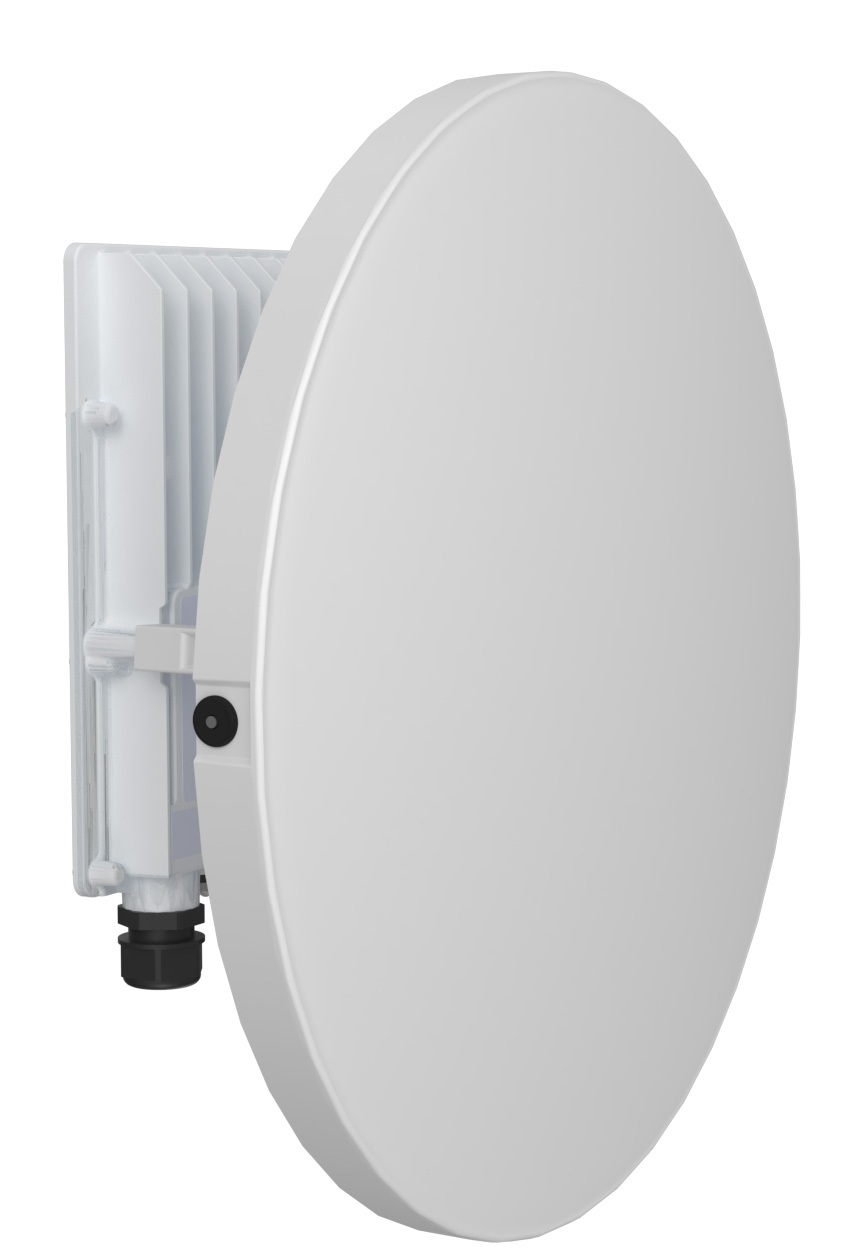

Intracom Telecom is committed to innovating for ultra-broadband FWA and brings solutions of the highest quality for deployment in sub-urban and rural residential areas. The WiBAS™ G5 GigaConnect / GigaConnect+ Dual Radio/Polarization terminals with MU-MIMO capabilities, further enhances the FWA solution portfolio. The terminals can delivers download speeds of up to 2.4 Gbps, offering increased operational convenience, reliable performance, and energy efficient features, making it a true breakthrough in the FWA market.

MU-MIMO technology ensures high spectrum efficiency alongside fast and reliable connections. The device supports advanced networking features, extended coverage, and cutting edge PtMP radio technology in the mm-Wave area-licensed bands, while enabling state-of-the-art IP connectivity in zero footprint installations. It is ideal for service locations that demand cost-effective and rapidly deployed FWA networks. Zero-touch provisioning simplifies network deployment, while improved modem technology maximizes channel bandwidth utilization and support of denser PtMP networks.

Highlights

• Dual-polarity radios with up to 2.4 Gbit/s downlink capacity per subscriber.
• MU-MIMO access method with interference cancellation techniques.
• Operation at area-licensed frequencies:
  • 24 / 26 / 28 GHz, 29 / 31 GHz, 37 / 39 GHz
• L1 Throughput (net) per Terminal (Mbit/s) (DL / UL):
  • 1000 / 551 (FDD @ 112 MHz), 2400 / 400 (TDD @ 200 MHz)
• Supported channel bandwidths:
  • FDD (56 / 112 MHz), TDD (100 / 200 MHz)
• Range extending up to 11 km (FDD with WiBAS™ G5 Dual hub) and 8.8 km (TDD with WiBAS™ G5 Smart hub).
• Support of various service profiles with advanced QoS scheduling.
• Effortless rollout employing zero-touch provisioning automated procedures.
• 2.5 Gbit/s Physical Interface
• Less than 3.5 kg (radio and antenna)
• 30 cm or 50 cm parabolic antenna options.

Applications

• Ultra Broadband Access: High-speed internet for every community.
• FWA Connectivity for MDUs: Deliver ultra-fast, reliable broadband to end-users in apartments, condominiums, and housing complexes, eliminating the need for fiber installation.
• Enterprise Networks: Reliable connectivity for cloud services and business applications.
• Enhanced Service Reliability: Alternative connectivity link for critical applications.
• Transportation Systems: Real-time monitoring, security surveillance, and control center communication.
• Public Safety & Government Services: Video surveillance, remote monitoring, and emergency response.
• Utility Operations: Real-time data collection, predictive maintenance, and outage response.
• Surveillance & Security: Video monitoring for crime prevention and public safety.
• Smart City Solutions: Connected infrastructure for efficient urban management.
• Military Communications: Secure, ruggedized networks for tactical operations
